Fab is a large-format CNC milling machine to boost your production. It allows you to produce a wide range of materials every day at high speed and with precision.
Note: the spindle & accessories are NOT included in the kit and must be selected separately.
Need advice?
Our experts are here to help.
This video covers everything you need to know, from how to operate the machine, to the available spindle power and important safety considerations. By the end of it, you'll have a much clearer understanding of the machine.
To go even further, you can access full product presentation of Fab.
| Size & Weight | |
|---|---|
| Working Area | 1330 x 2700 mm |
| Overall size | 1750 x 3150 x 1250 mm |
| Z Clearance height |
|
| Weight | 180 kg |
| Performance | |
| Positioning Accuracy | ± 50 µm / 300 mm |
| Cutting accuracy | 0.1 mm (this value highly depends on the tool and cutting parameters chosen by the operator) |
| Travel speed max. | 20,000 mm/min |
| Typical cutting parameters | In softwood, with a 6 mm 3 flutes carbide cutter:
|
| Compatible Spindle | VFD 2,2kW air-cooled |
| Power Consumption | 1x 230VAC (max. power: 3.5 kW with spindle, +0,55 kW with dust collection) |
| Mechanics | |
| Structure | Steel plates (8 & 10mm) |
| Linear guide system | Double prismatic rail HGR20 |
| Drive System | X and Z-Axis
Y-Axis
|
| Electronics | |
| Motors | Nema34, 6 A, 4.5 Nm (X & Y) |
| Motor drivers | 32-bit DSP |
| Embedded computer | Raspberry Pi 4 - 2 GB RAM |
| Ports | 3 USB ports 1 Ethernet port 1 HDMI port |
| Connectors | Motors and sensors - Neutrik XLR Inputs / Outputs - GX12 |
| Interface Unit (not included) | 13.3" TFT IPS capacitive touchscreen |
| Connectivity | WiFi (2.4 GHz and 5.0 GHz IEEE 802.11ac ) Bluetooth (5.0) Gigabit Ethernet |
| Limits Sensors | |
| Control Software | |
| PlanetCNC TNGv2 | Embedded G-code generator/editor Toolpath visualization Import toolpath from 2D files (dxf, png,...) Advanced motion interpolation Simulation mode Manual Data Input mode (MDI) Automatic homing and square gantry Automatic tool length measuring and probing Feed & speed override Customizable view, scripts and M-codes |
| CAM Compatibility | Compatible with all CAM software available on the market (advising Fusion360) |
| Safety | |
| Spindle | Controlled spindles will automatically stop when an emergency stop button is pressed or a milling program is finished. This limits the time when a sharp endmill is spinning to a minimum. |
Inductive sensors (6x)
| Tool length sensor | Touch plate with crocodile clip |
| Controller | PlanetCNC Mk3/4 |
from

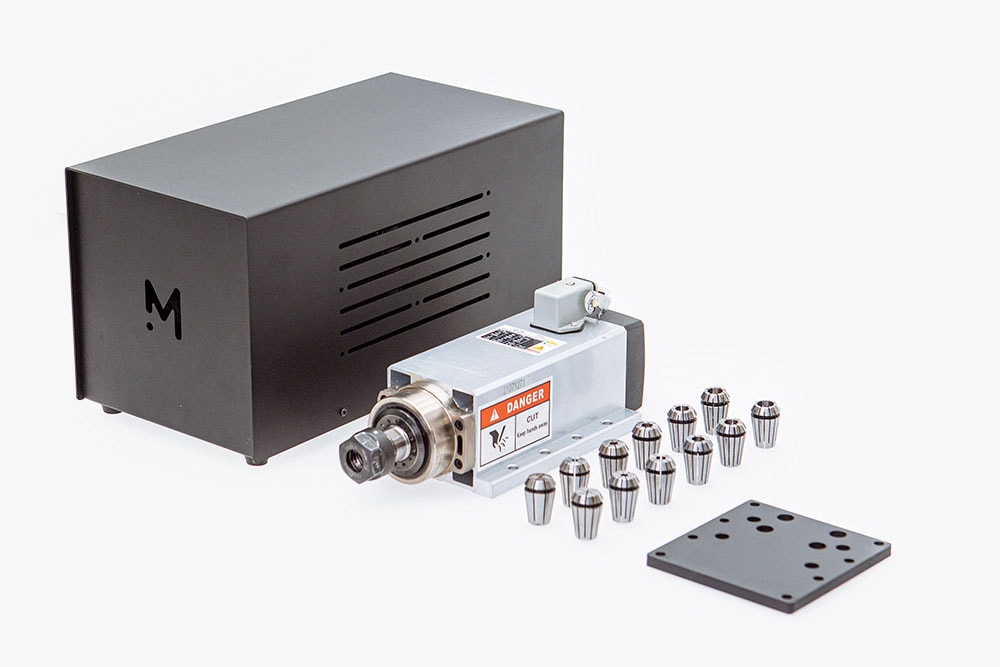

A spindle compatible with our Fab CNC milling machines.
